Description

2013 Complete Insulating Glass Plant Lisec

Includes:

  • 2013 Lisec automatic cutting line;
  • 2013 Lisec automatic insulated glass production line (1600×2500);
  • 2013 Complete automatic lisec logistic and handling line.

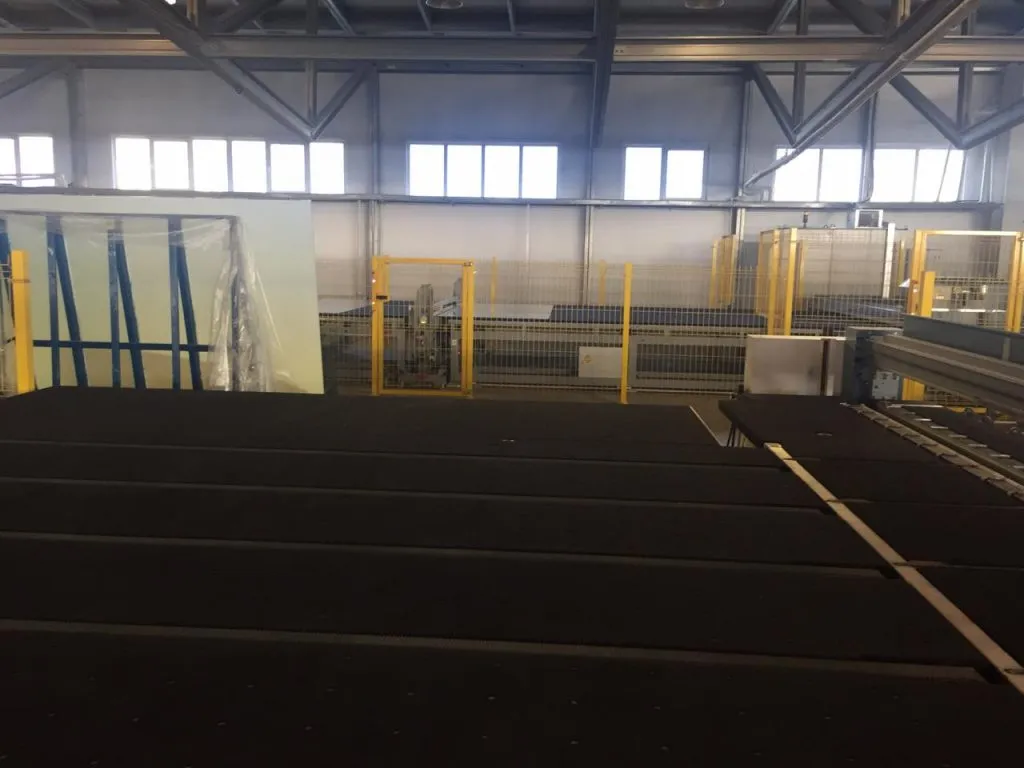

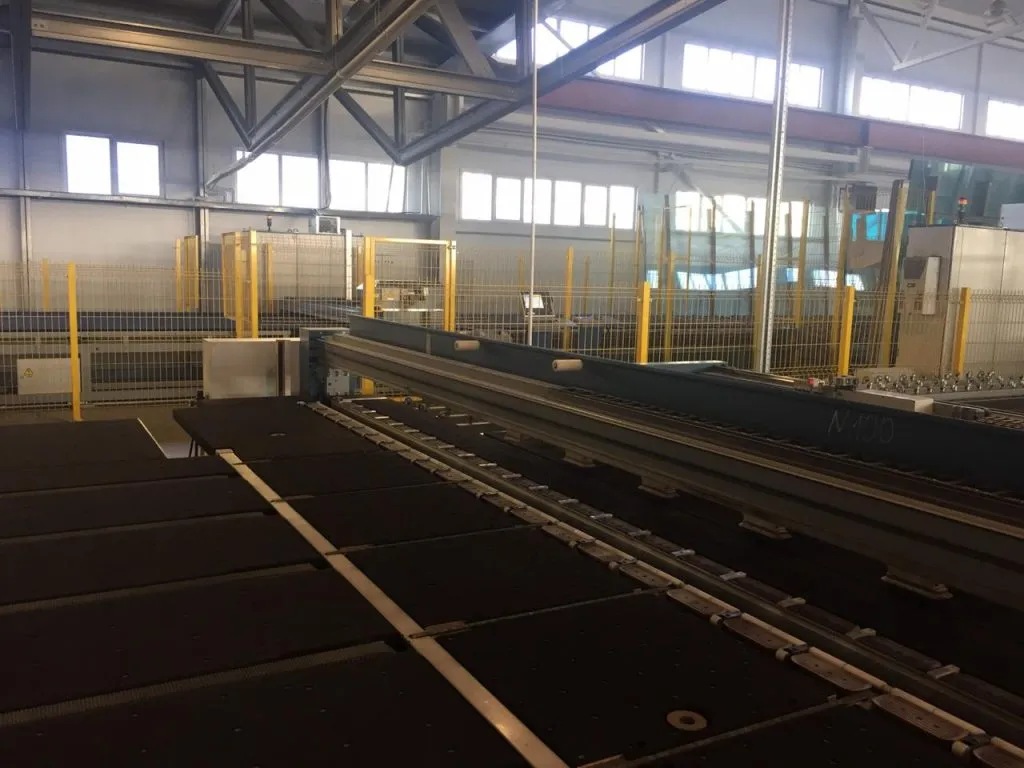

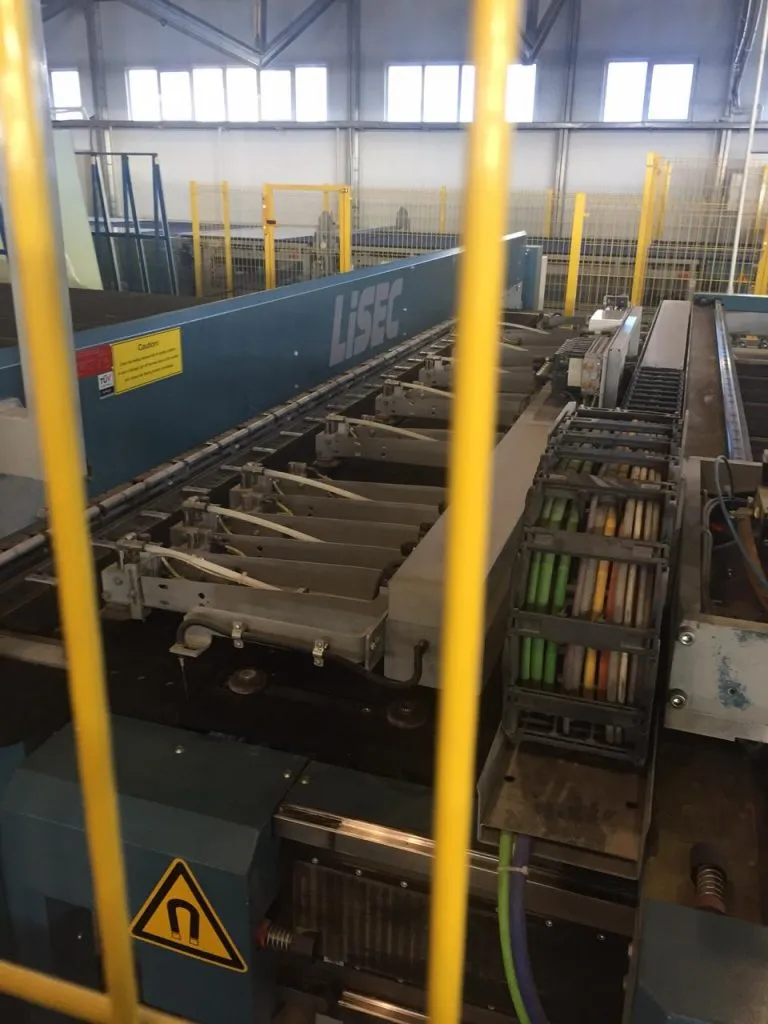

2013 Lisec Automatic Cutting Line

Includes:

  • 6 Glass pyramids LBS-60/40;
  • Automatic 6 position glass loader ATH-60/30FD;

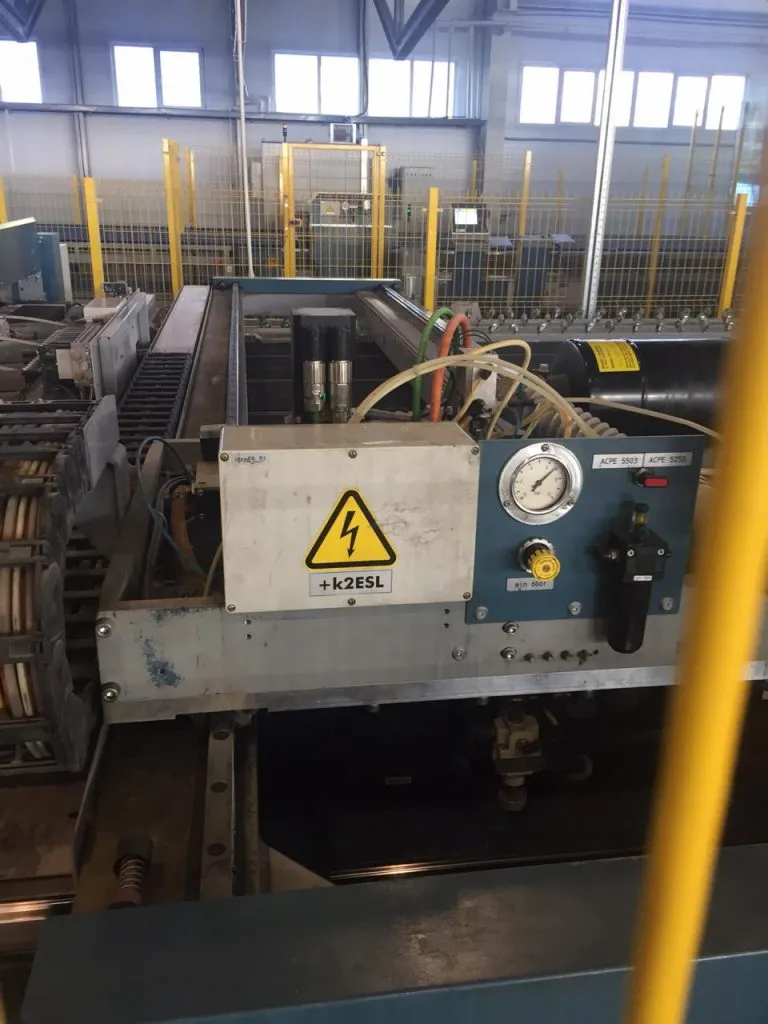

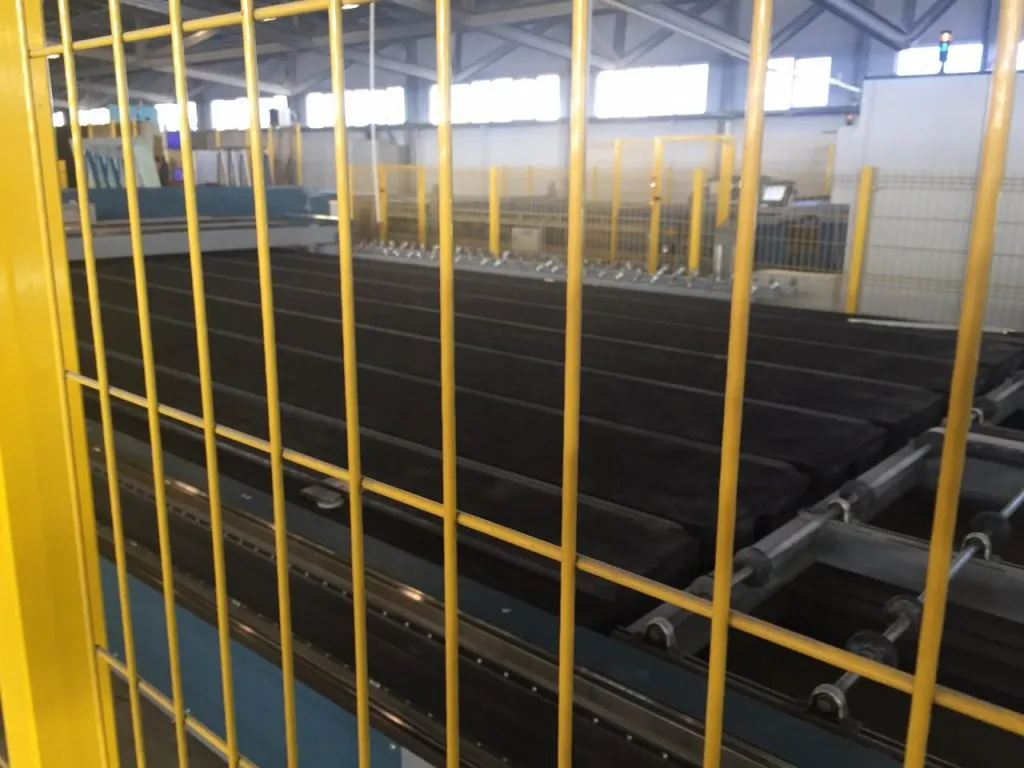

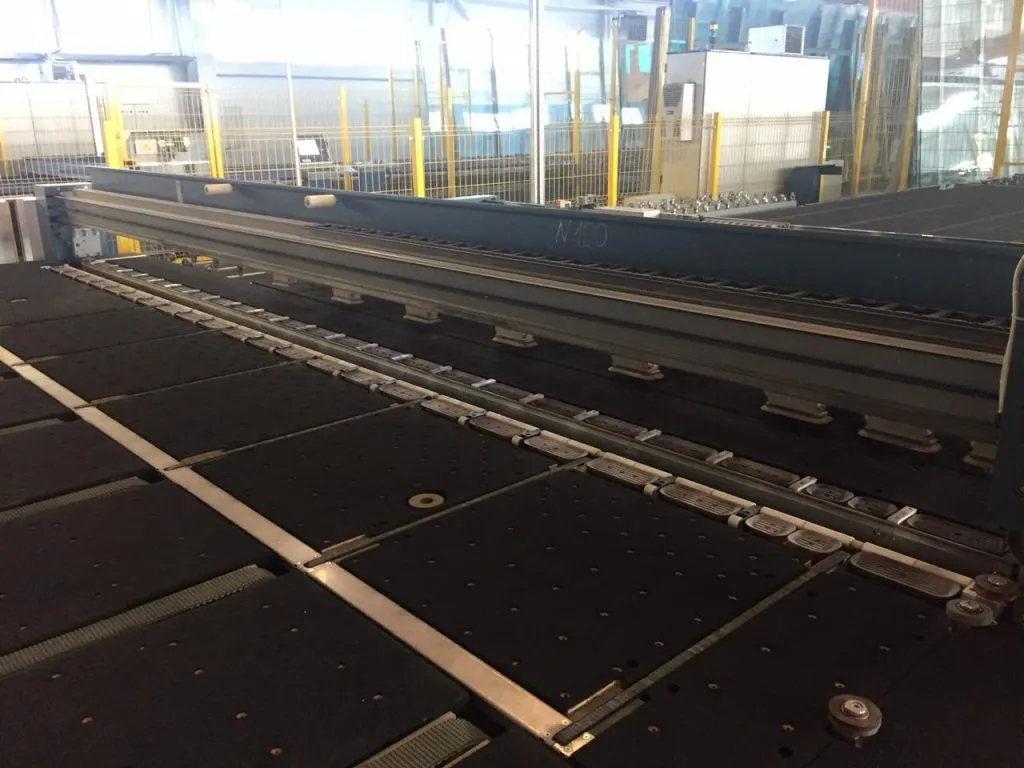

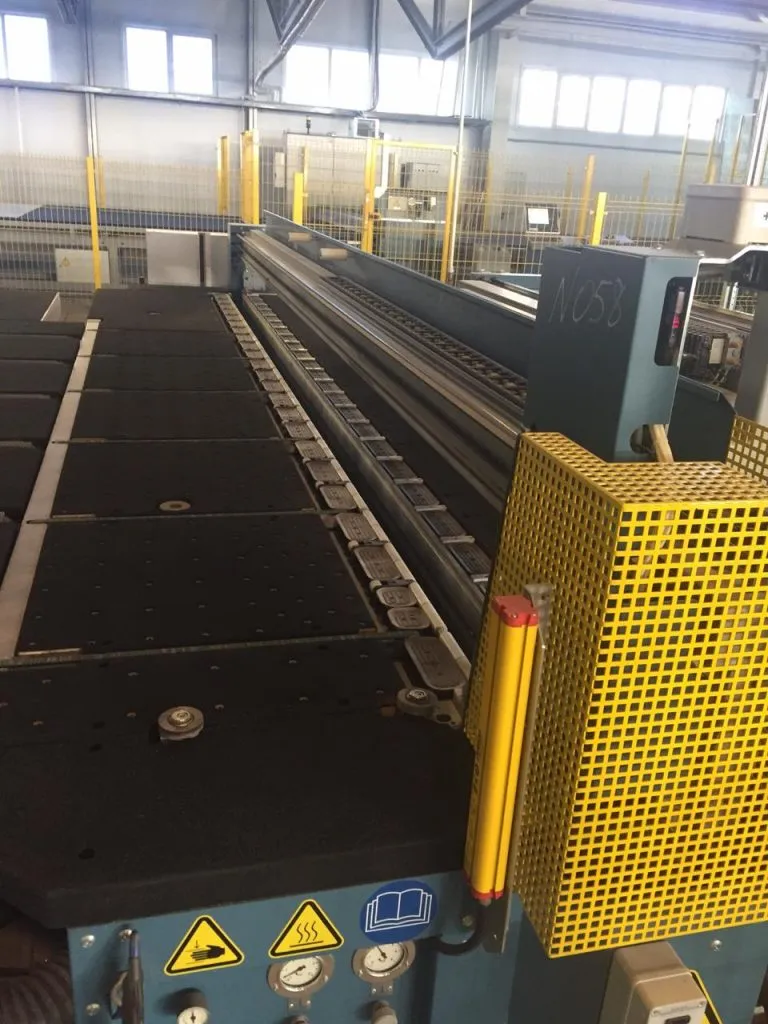

  • Automatic cutting table with LOW-E deletion ESL-60/30RS-L;
  • Laminated glass cutting module including laser positioning VB-45;
  • Belt transport section BTA-50/33;
  • Support table BTS-10/30;
  • Automatic X breaking section TBX-33/12;
  • Belt transport section BTA-20/33;
  • Hydraulic tilting loading table including breaking bars BTS-37/33.

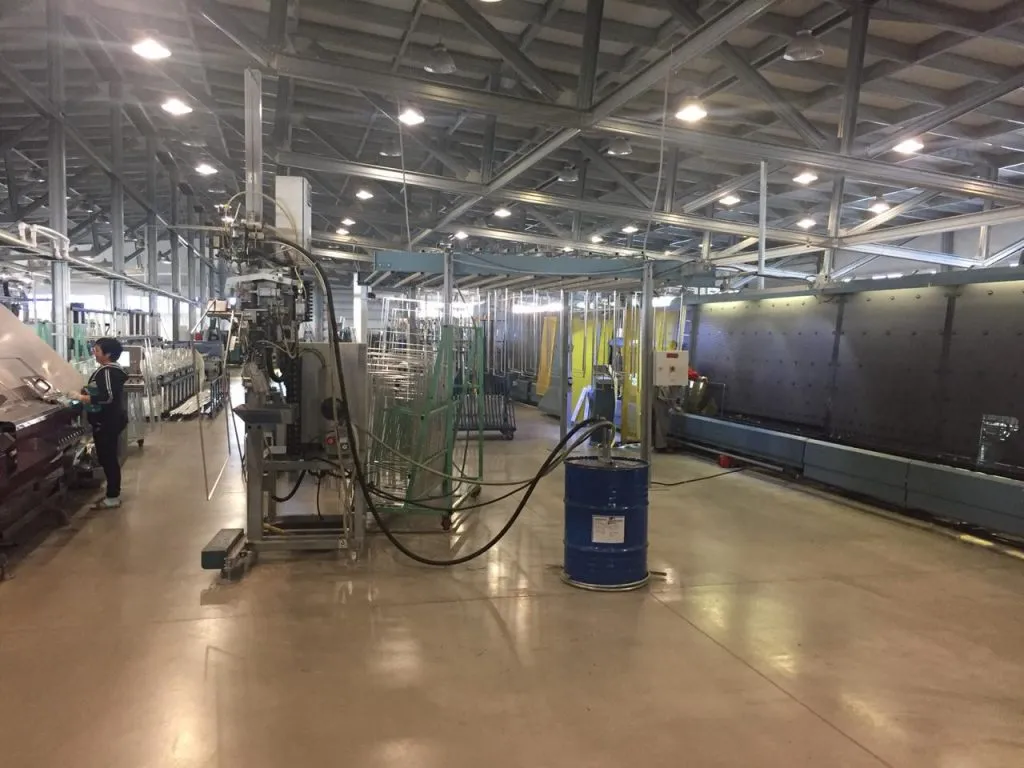

2013 Lisec Automatic Insulated Glass Production Line (1600×2500)

Includes:

  • Conveyor RTVB-27/16 WE;
  • Conveyor RTVB-27/16 WE;

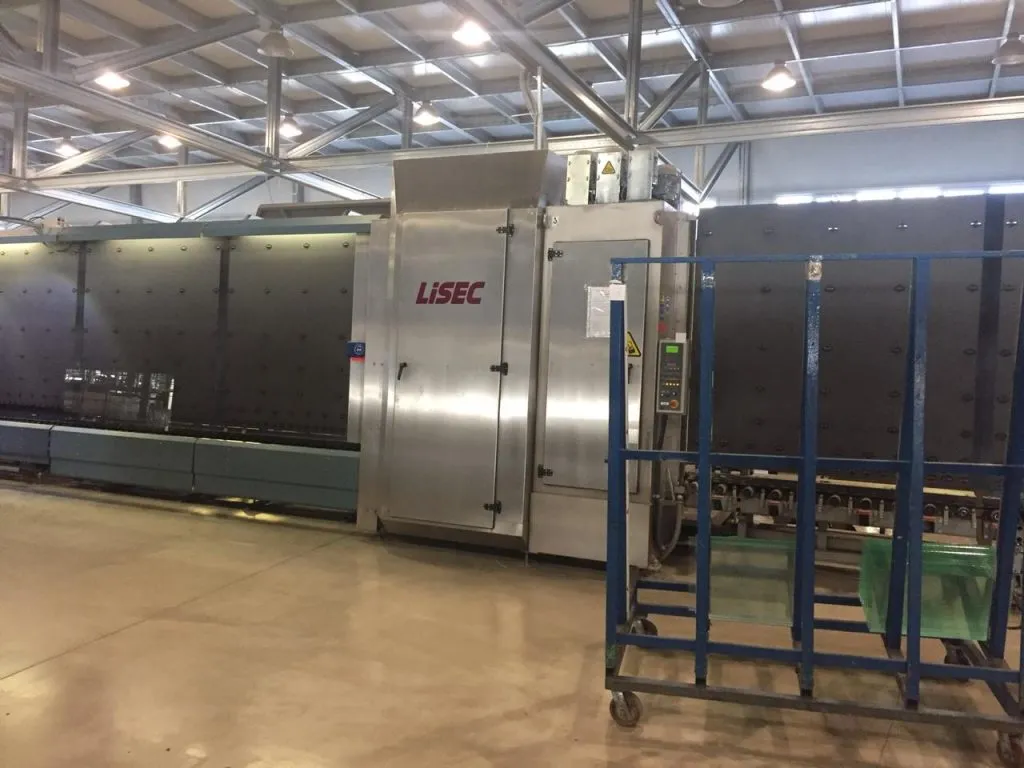

  • Automatic washing machine including water preparation and quartz filter RTL-16 VN;
  • Transport section including separate drive RTVB-32/16 ST;
  • Frame setting section RSVN-35/16 U;
  • Measuring section before the press RTVB-27/16 MZs
  • Automatic gas press (may be used for 3 gas types) can be used for double glazing units -FPS-25/16 US;
  • Transport section RTVB-15/16 ST;
  • Inlet measuring station RTVB-15/16 VFE;

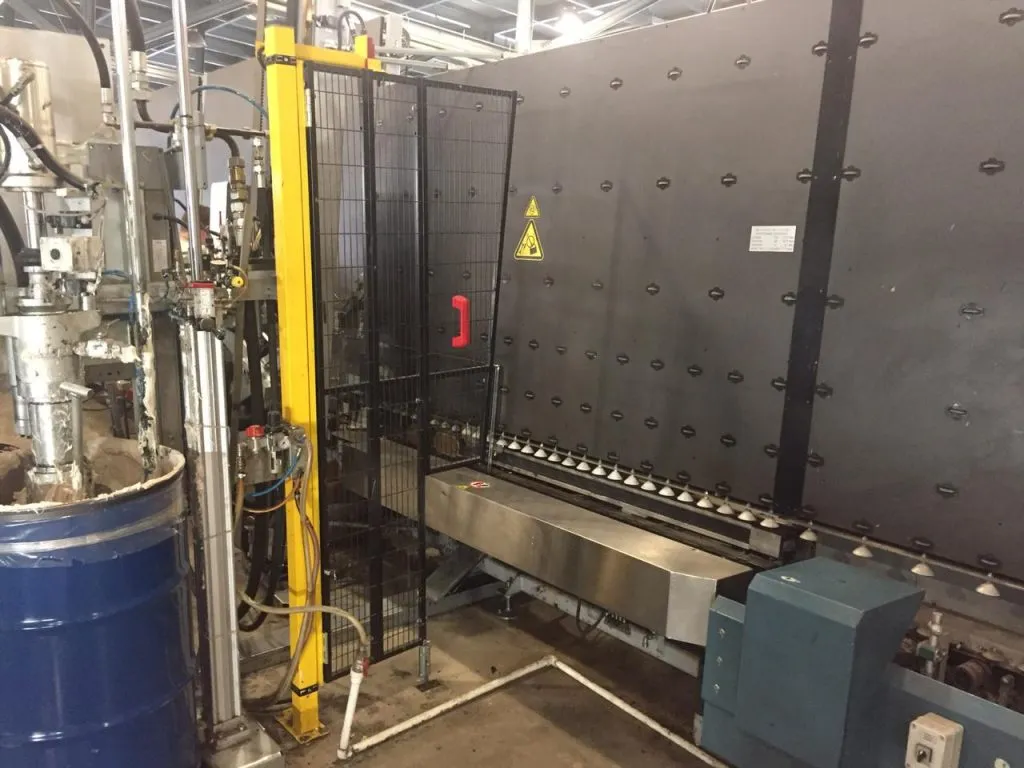

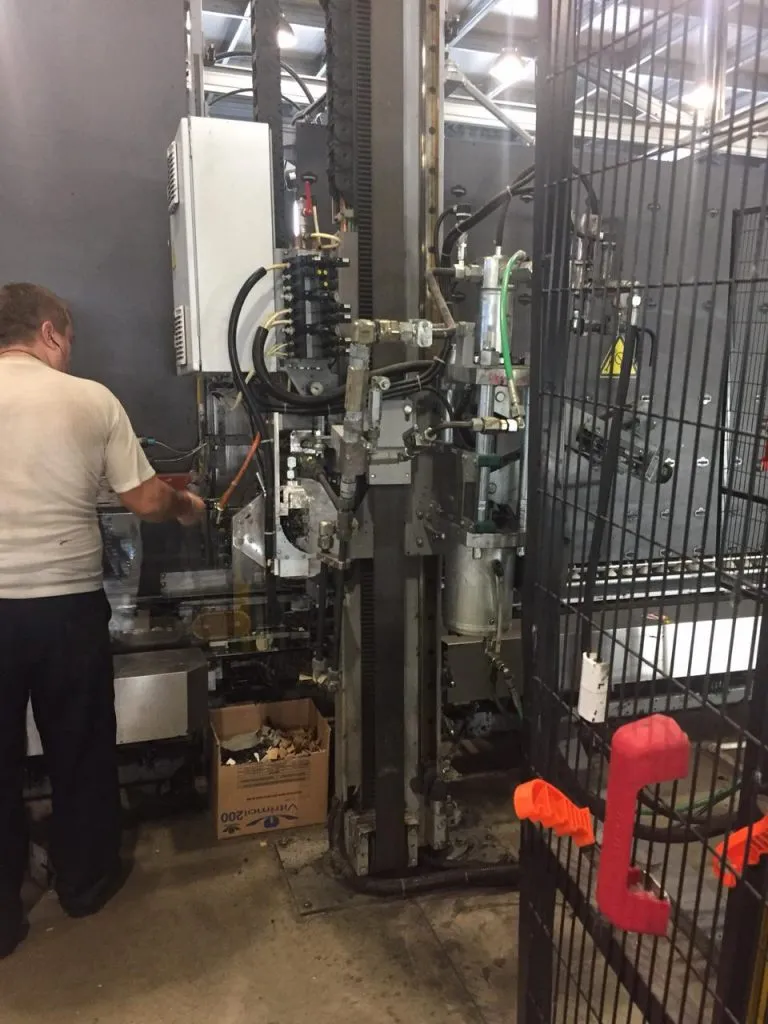

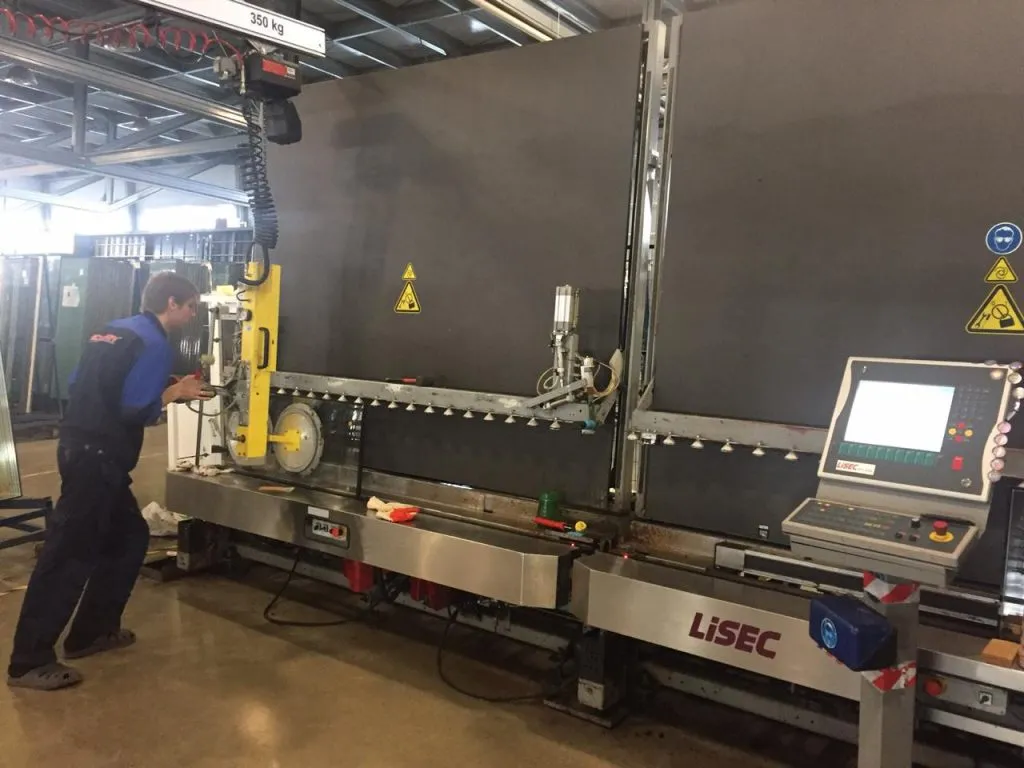

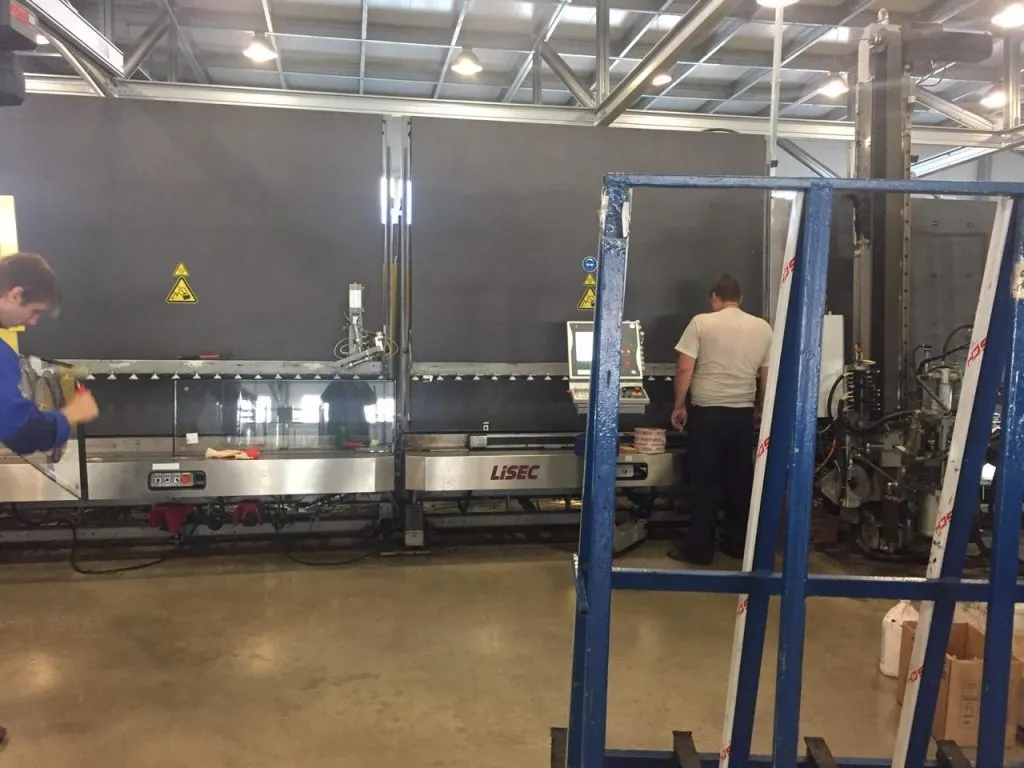

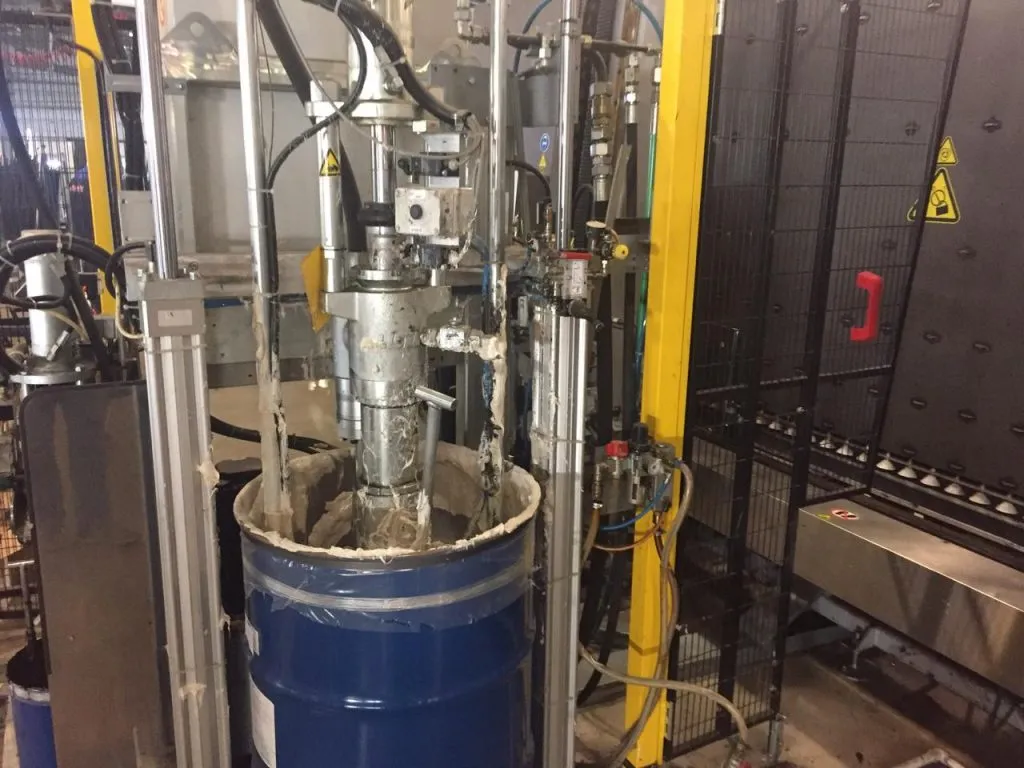

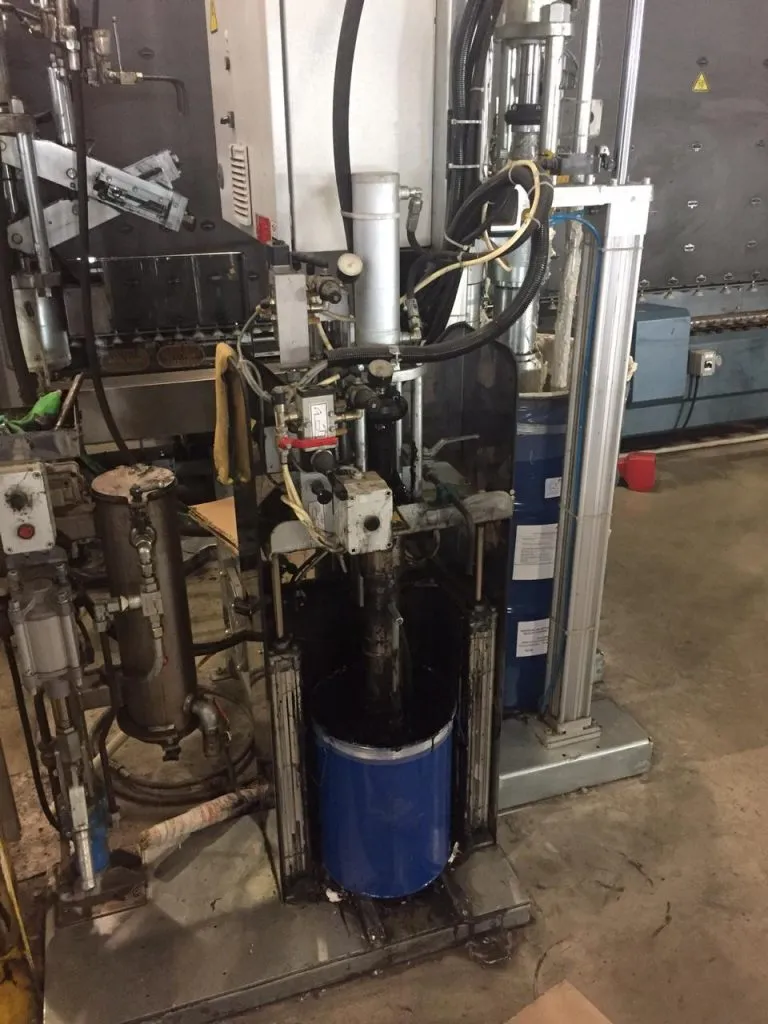

  • Advanced automatic sealing robot VFL-1D/16;
  • Flushing device for sealing Robot -KSE;

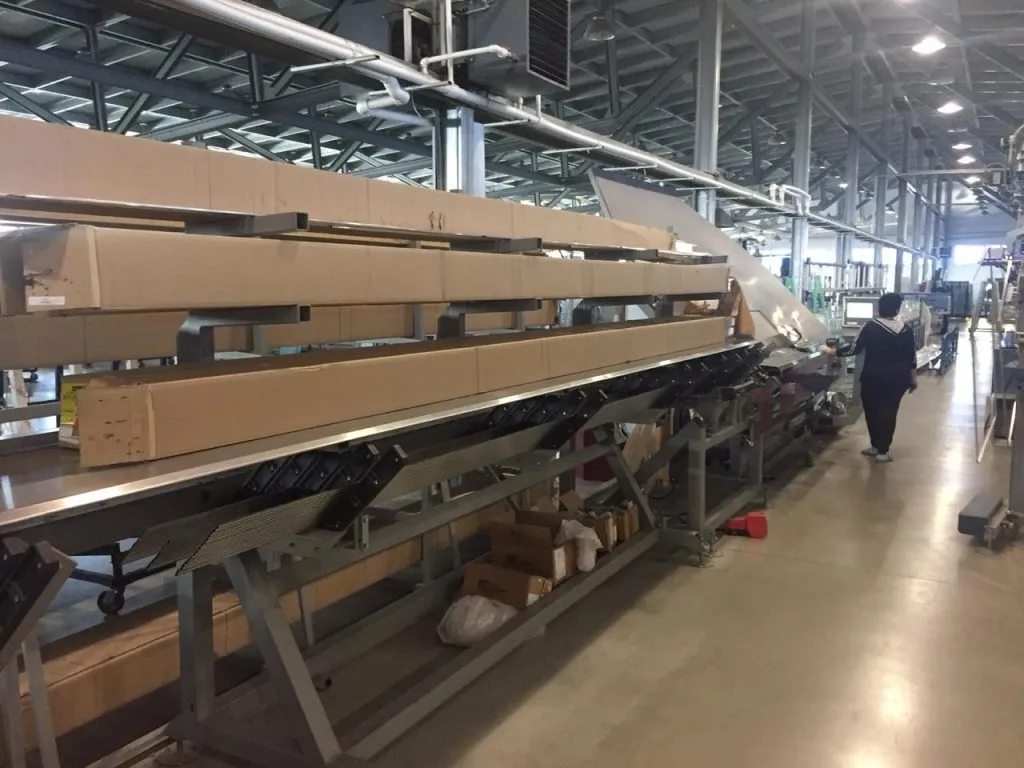

  • Horizontal frame conveyor FR-400 S;
  • Automatic butyl extruder LBH-25V;
  • Vacum lifting system LAS-25;

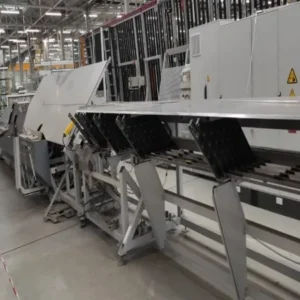

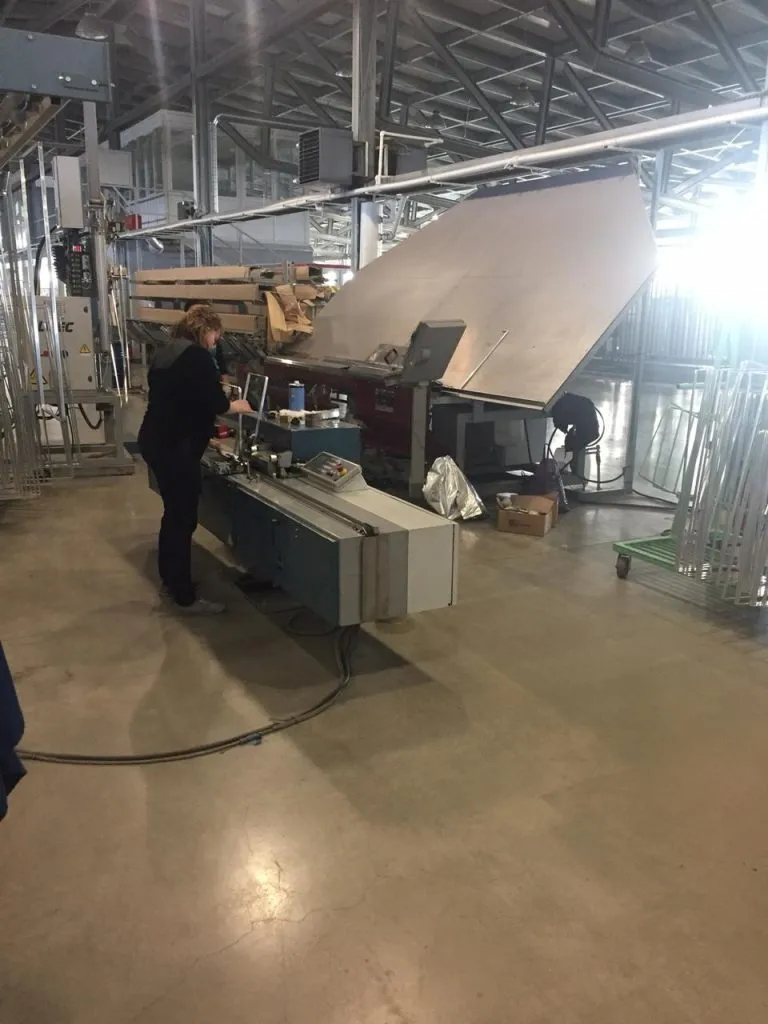

  • Frame bending machine BSV-30/4 K;
  • Printer-video Jet 1520;
  • Automated desiccant filling machine A1RL.

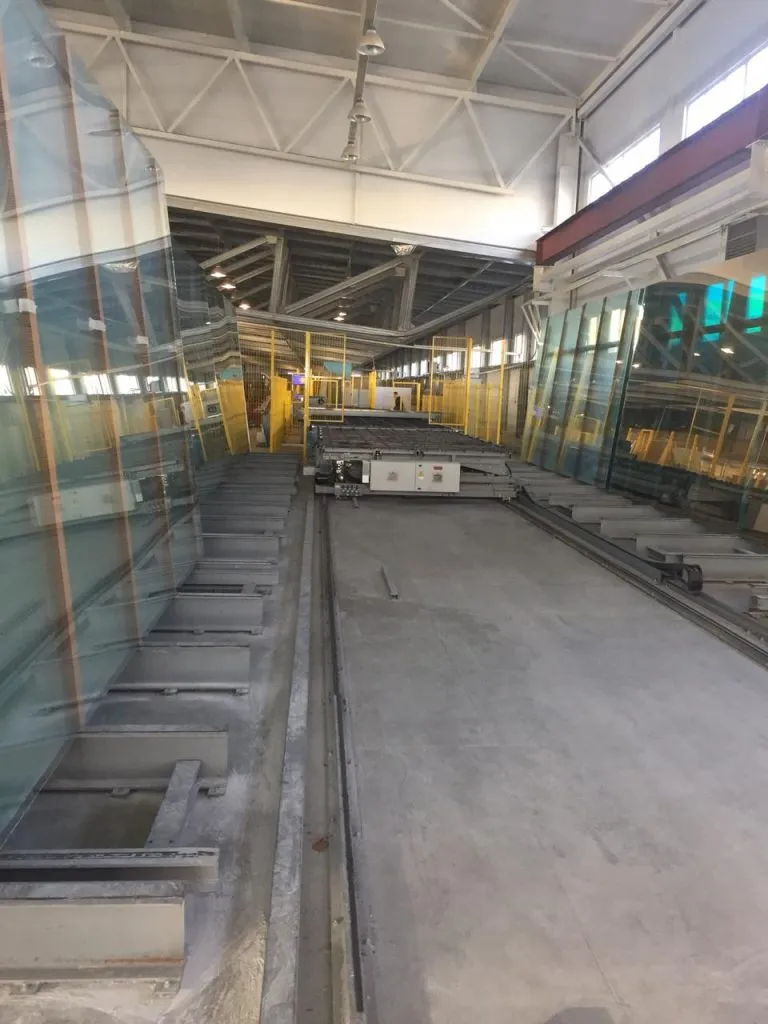

2013 Complete Automatic Lisec Logistic and Handling Line

Includes:

  • Transport storage station with positioning locators and small belt partition BTA 20/26;

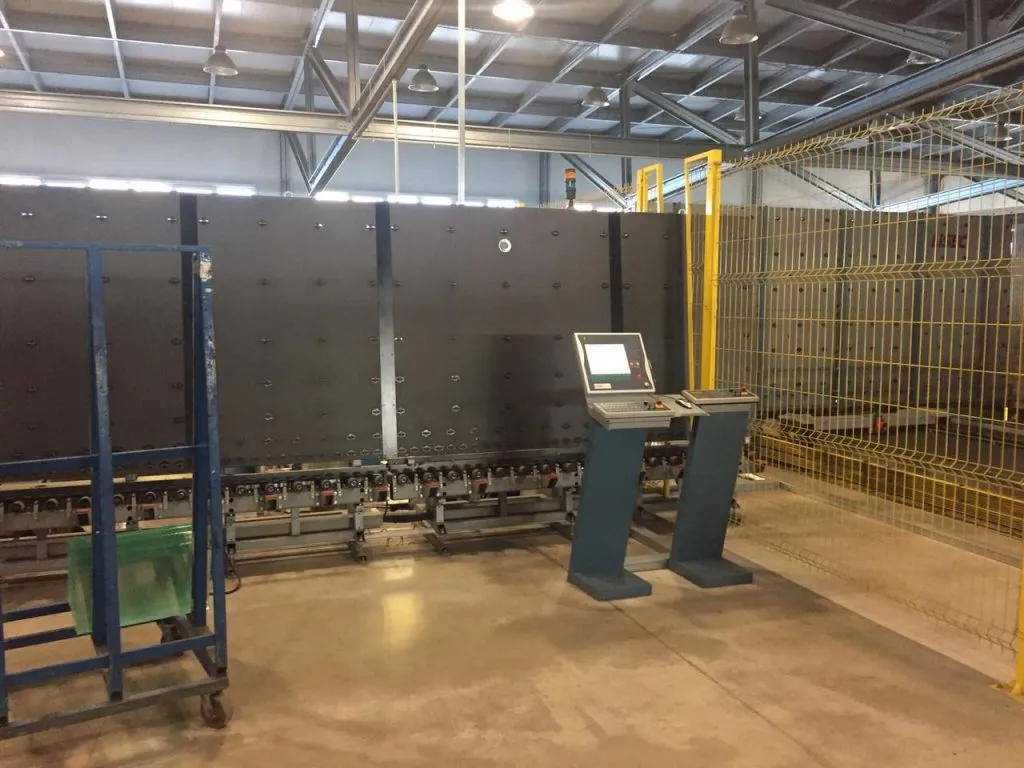

  • High speed tilting table RKT 25/20 KLA;
  • Measuring transport section RTVN 27/20 MZ;
  • Transport section RTVB 38/20;
  • Transport section RTVB 38/20;
  • Transport storage station with positioning locators and small belt partition BTA 20/26;
  • High speed tilting table RKT 25/29 KLA;
  • Measuring transport section RTVN 27/20 MZ;
  • Transport section RTVB 15/20 ST;
  • Transport section RTVB 11/20 GT;
  • Transport section RTVB 11/20 GT;
  • Transport section RTVB 15/20 ST;
  • Shuttle SHL 45/20 E;
  • Shuttle SHL 45/20 E;

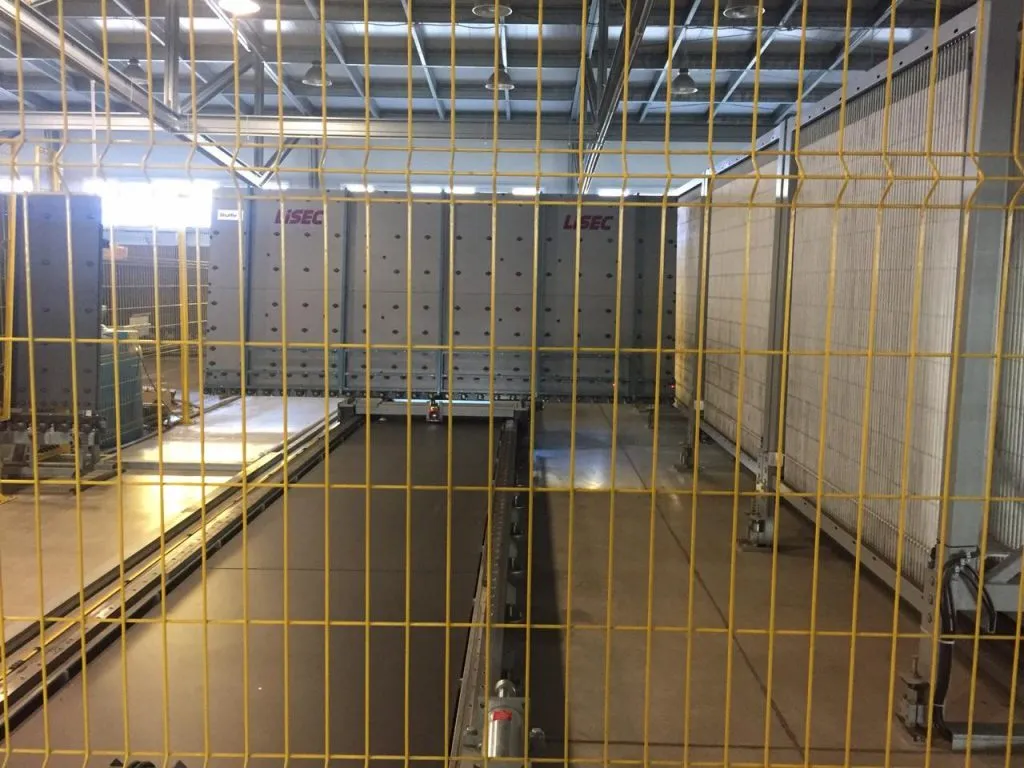

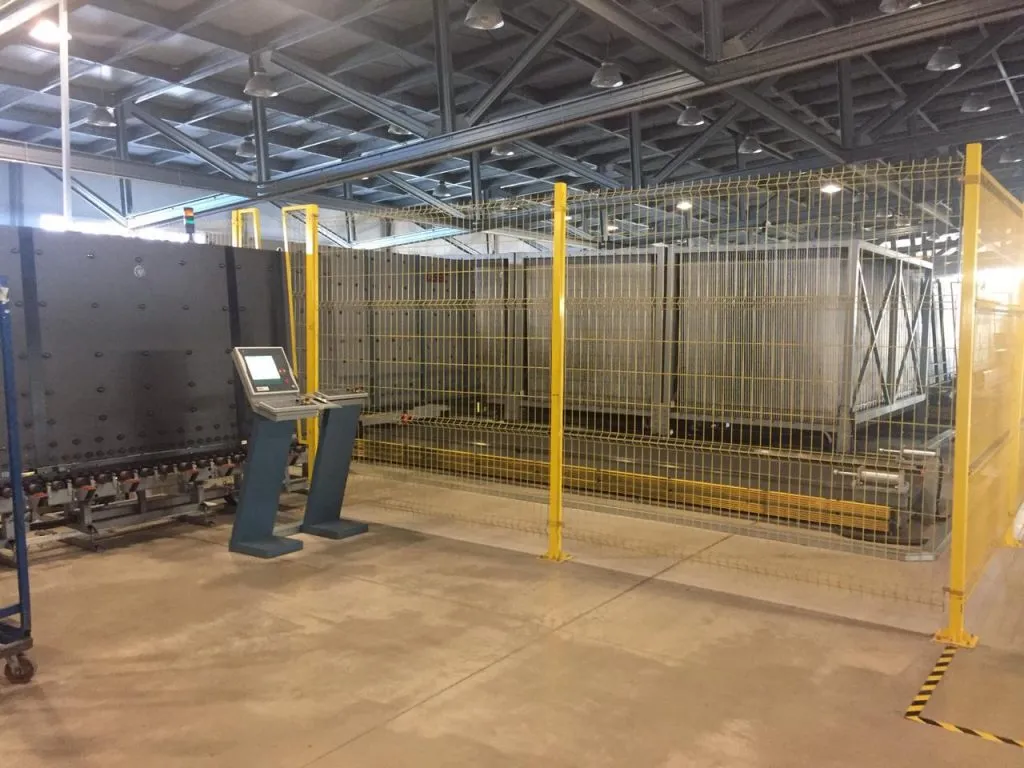

  • Automatic sorting system including 3 sections each for 85 glass sheets ASM 45/20-3;
  • Shuttle SHL 45/20 A;
  • Shuttle SHL 45/20 A;
  • Safety Fencing CE.

Good Working Condition!

For the full list machinery included please contact us.
