2010 Pertici SC55 Aluminum Profile Cutting Centre

Pertici Scarabeo 2010

  • Manufacturer: Pertici
  • Year: 2010
  • Location: Europe
  • Category: Window/Door Production Machinery
previous arrow
next arrow
ArrowArrow
Slider

Description

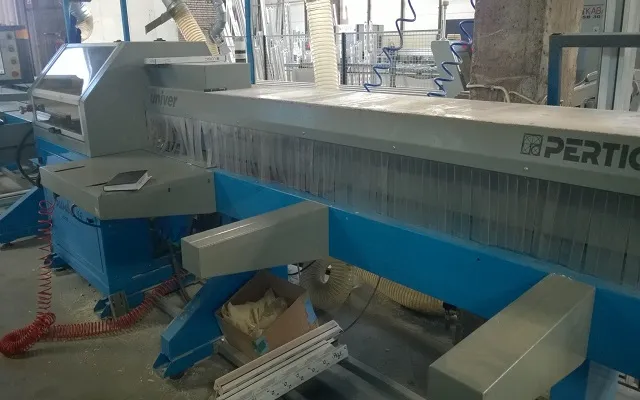

2010 Pertici Scarabeo SC 55

Includes:

  • 2 CNC controlled axis
  • Carbide saw blade 500 mm
  • Pneumatic rotation head at 45° – 90° – 135
  • Pneumatic blade advance
  • Integral protection of cutting area
  • Pair of horizontal pneumatic clamps with low pressure device
  • Pair of vertical pneumatic clamps with low pressure device
  • Label printer kit
  • Motorized chips and waste cut conveyor complete with suction outlet for chips separation
  • Industrial dust suction system with chips collecting bags and exhaust air filters
  • Blade motor power: 2,2 kW
  • Blades speed: 2800 rpm
  • Maximum profile dimensions: width 134 mm, height 148 mm
  • Minimum profile dimensions: width 36 mm, height 48mm
  • Max bar length: 6500 mm
  • Power supply: 7 kW
  • Air consumption: 250 Nl/’
  • Two furniture tables under the sash.
  • Automatic Fitting Table
  • Dimensions (12300 x 2300 x 3000 mm)
  • Weight: 2400 kg

All Machinery Comes with all necessary software

Perfect Working Condition
