2014 Rotox Schirmer Complete PVC Production Plant 480 Units/Shift

Schirmer-Rotox Complete Automatic PVC

  • Manufacturer: Shirmer-Rotox PVC​
  • Year: 2014
  • Location: Europe
  • Category: Window/Door Production Machinery
previous arrow
next arrow
ArrowArrow
Slider

Description

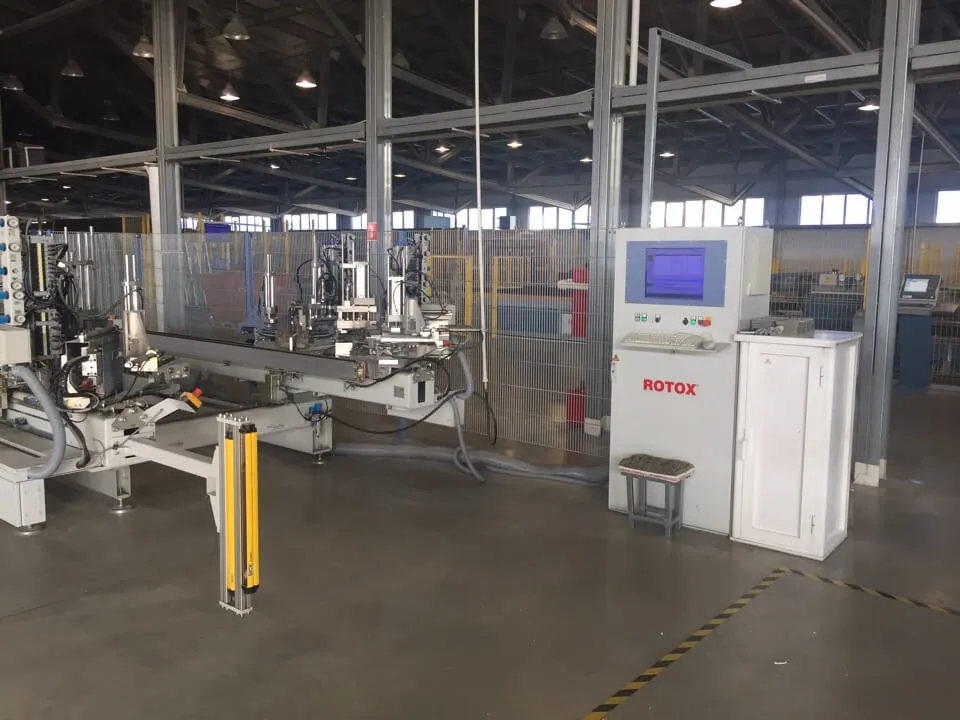

Schirmer-Rotox Complete Automatic PVC

Includes:

  • Two Cutting and Machining Centre Schirmer
  • Four Welding/Cleaning Line Rotox
  • One 8-head Welding Machine
  • Two 6-Head Welding Machines
  • One 4-head Welding Machine

Complete List of Machinery Included:

Schirmer Cutting and Machining Centre (including automatic steel insertion station)

    • In-feed magazine
    • 6-axis “ULTRA SPEED” G-module
    • Seal punch
    • “ULTRA SPEED” VU-saw
    • 90° saw

    Cross conveyor module used as a real time buffer equipped with:

    • Screw insertion station
    • Automatic 2-track steel insertion station

    SC steel centre equipped with:

    • Steel feeder magazine
    • Steel saw

    SBZ I profile bar machining centre equipped with:

    • Two screw insertion stations for simultaneously inserting two screws

    SBZ II profile bar machining centre equipped with:

    • Three screw insertion stations for simultaneously inserting three screws
    • Transverse magazine used as real time buffer

    Schirmer Cutting and Machining Centre (including automatic steel insertion station)

    • In-feed magazine
    • 6-axis “ULTRA SPEED” G-module
    • Seal punch
    • “ULTRA SPEED” VU-saw
    • 90° saw

    Cross conveyor module used as a real time buffer equipped with:

      • Screw insertion station
      • Automatic 2-track steel insertion station

    SC steel centre equipped with:

    • Steel feeder magazine
    • Steel saw

    SBZ I profile bar machining centre equipped with:

    • Two screw insertion stations for simultaneously inserting two screws

    SBZ II profile bar machining centre equipped with:

    • Three screw insertion stations for simultaneously inserting three screws
    • Transverse magazine used as real time buffer

    SBZ III bar machining centre equipped with:

    • Screw anchor hole drilling stations, 1 x fixed and 3 x movable for simultaneous drilling of 4 x screw anchor holes
    • Cross conveyor module used as a real time buffer

    Frame Preparation

    • Rotox 4-head Welding Machine (3000×2500 mm)
    • Rotox 4-head Welding Machine (3000×2500 mm)
    • Rotox 4-head Welding Machine (3000×2500 mm)
    • Rotox 4-head Welding Machine (3000×2500 mm)
    • Frame Transport Section
    • Frame Transport Section (with NC axle)
    • Rotox 2-Head Corner Cleaning Machine
    • Rotox Transport Table
    • Rotox Frame Transport Section (3200×2300 mm)
    • Rotox Frame Transport Section (3200×2300 mm)
    • Rotox Drilling Table
    • Rotox Automatic Sash Fitting Station
    • Rotox Automatic Delivery Table
    • Shelf Trolley For Frames
    • Rotox Frame Transport Section (3200×2300 mm)
    • Rotox Frame Transport Section (3200×2300 mm)
    • Rotox Sliding Work Table (3000x1600mm)
    • Rotox Sliding Work Table (3000x1600mm)
    • Rotox Sliding Work Table (3000x1600mm)
    • Rotox Sliding Work Table (3000x1600mm)
    • Rotox Tilting Table
    • Rotox Automatic Roller Table
    • Rotox Automatic Roller Table
    • Rotox Buffer (20 Positions)

    Glazing Section

    • Rotox Vertical Roller Conveyor (L=2000)
    • Rotox Vertical Roller Conveyor (L=2000)
    • Rotox Vertical Roller Conveyor (L=2000)

    Logistic Section

    • Rotox Roller Conveyor
    • Rotox Automatic Buffering Station
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Rotox Automatic Glass Adhesive Dispenser
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor (Turning)
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Automatic Circular Saw
    • Rotox Roller Conveyor
    • Rotox Roller Conveyor
    • Rotox Loading Measurment Stand (Including Vacuum Sucker)
    • Rotox Installing Section (Including Vacuum Sucker)

    Cross conveyor module used as a real time buffer

    Able to produce 240 units per shift

For full list of machinery please contact us

Perfect Working Condition
