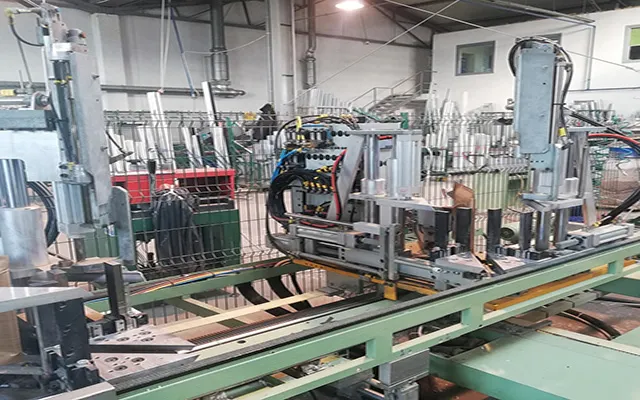

2008 Complete PVC Window Production Urban Rapid

PVC Urban Rapid

  • Manufacturer: Urban
  • Year: 2008
  • Location: Europe
  • Category: Window/Door Production Machinery
previous arrow
next arrow
ArrowArrow
Slider

Description

Complete 2008 PVC Windows Production Plant Produces 200-240 Frames per shift

Includes:

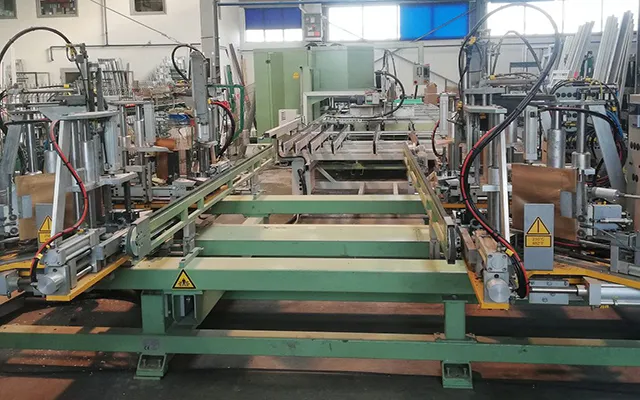

  • Two Horizontal 4 Head Welders Urban with Double Head Cleaning Machine )

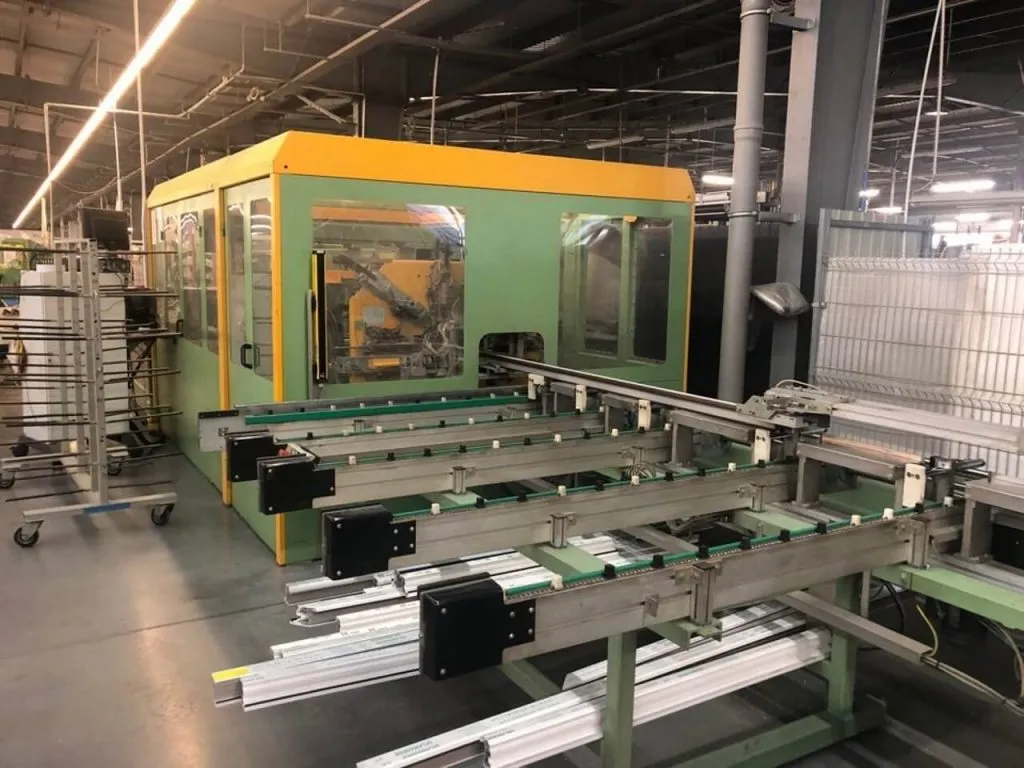

  • Rapid Cutting and Processing Line able to process up to 240 frames per shift
  • In Feed Magazine for 10 Profiles with length up to 6500mm
  • 6 Axis M-Module for PVC processing
  • Sawing Module , with two units: 90 ° saw blade Ø 450mm; two saw blades Ø 500 mm at 45 ° in one unit for simultaneous cutting off the end of one and the beginning of the next workpiece. With separate hood
  • Optimization program with a length measurement of 10 points for a length of 6500 mm, including residue management.
  • Cutter for end processing of the impost with the height of the spindle for the complete mill 210 mm. With a separate hood.
  • Common cab for saw center and face cutter.
    Horizontal conveyor scrap length of 5200 mm.
  • The transverse conveyor for the accumulation of 10 blanks with a maximum length of 3500 mm, is extended in the direction of the reinforcement work station as compared to the standard for 2000 mm.
  • Label printer for manual labeling.
  • A reinforcing workbench with a width of 1000 mm between the cross conveyor of the saw and the supply magazine.
  • Supplying store of the center of fastening and processing in PVC and steel for 5 workpieces, dynamic feed.
  • A monitor showing the type and length of the reinforcement elements.
  • Separate axis for feeding and screwing reinforcements with two screwdrivers located on it. Two screws are screwed simultaneously, at a fixed distance from each other.
  • 9 drilling units: 4 horizontally, 4 vertically, 1 three-spindle unit for drilling under the handle.
  • Protective fencing, including doors with electric locks.
  • Remote access system via the Internet for prompt service.
  • Two furniture tables under the sash.
  • Automatic Fitting Table
  • Band Saw
  • Stands
  • Trolleys

All Machinery Comes with all necessary software

Perfect Working Condition
