Elumatec SBZ 140 Aluminiun Machining Center 2011

previous arrow
next arrow
ArrowArrow
Slider

Description

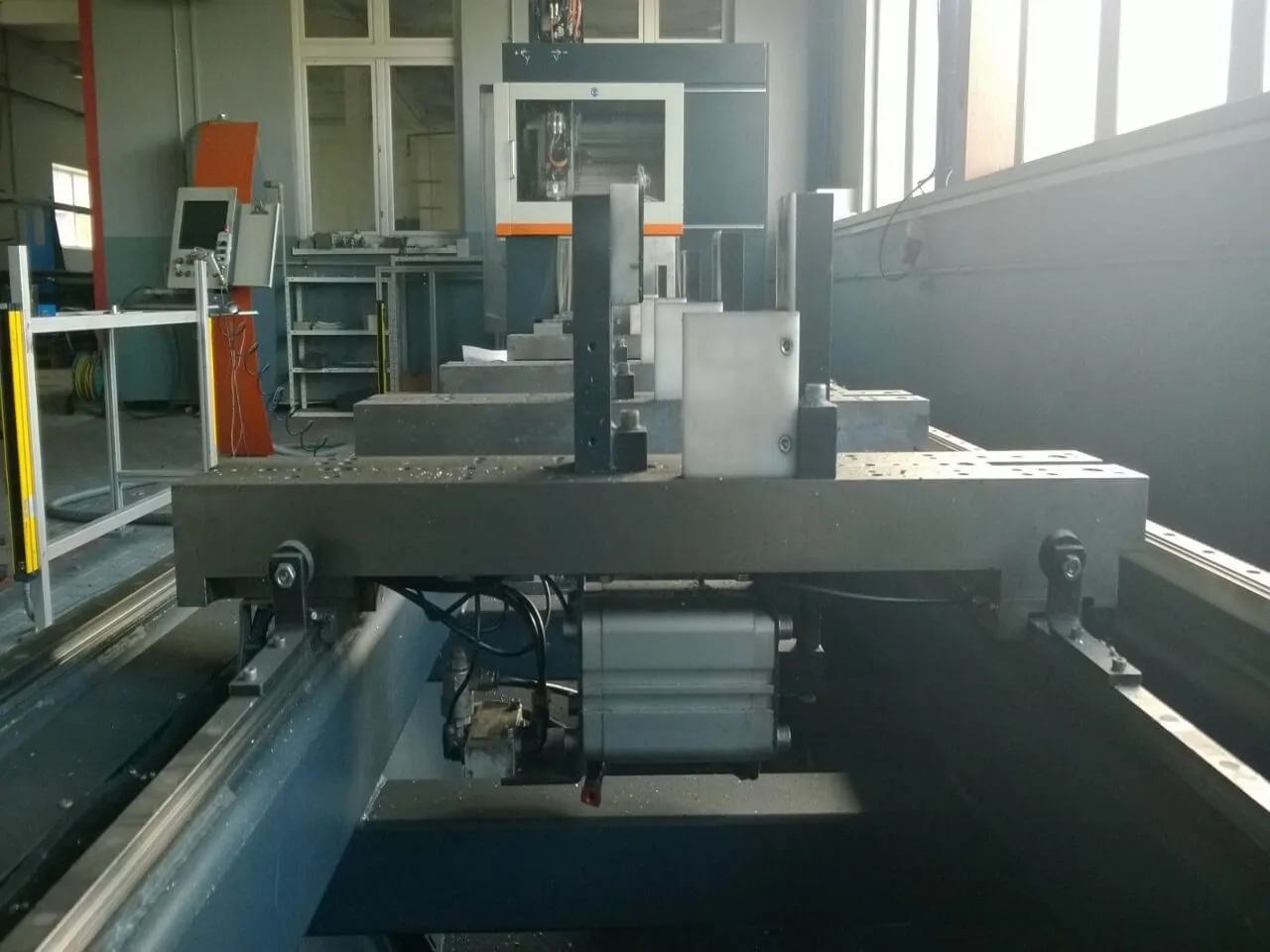

Elumatec Machining Centre including 5 Axis DG244 saw.

  • With this 4-axis profile machining center efficient aluminum and steel profile processing can be carried out in first-rate quality.
  • For profile surface protection all work cycles such as milling, drilling, or tapping are carried out while the profile bar remains stationary.
  • The axis-controlled cutter head is able to work the profile continuously at any position with all available tools from 0° to 180°.
  • The on-board magazine which can be loaded with up to eight tools provides for short tool changing times and hence for optimum working cycles.
  • For double bar and front processing a rotating angle head (0°/90°/180°/270°) with two different tools is available.
  • Thanks to the separate working zones processing in shuttle operation is rendered possible.
  • The electronic 4-axis industrial PC control for 2.5D application possesses a 15″ color display and RJ45 10/100 MB network connection.

Technical Information

  • Traverse X-axis: 7.600 mm/ V max. 65 m/min.;
  • Traverse Y-axis: 850 mm/ V max. 60 m/min.;
  • Traverse Z-axis: 650 mm/ V max. 60 m/min.;
  • Pivoting angle A-axis: 0 – 180 ° freely programmable in 1/10° steps.;
  • Spindle speed max. 24,000 r.p.m.;
  • Power output at spindle 10 kW S1.;
  • Tool changer with eight tools, additional tool positions on request.

Additional Information

  • Barcode scanner;
  • Automatic length measuring;
  • Automatic clamping device with collision detection;
  • Tool holder set, holder for end milling tool;
  • Rotation in the head for angle head;
  • Tool place for angle head;
  • 5 Axis DG244 saw.

All Machinery Comes with all necessary software.

Perfect Working Condition!
