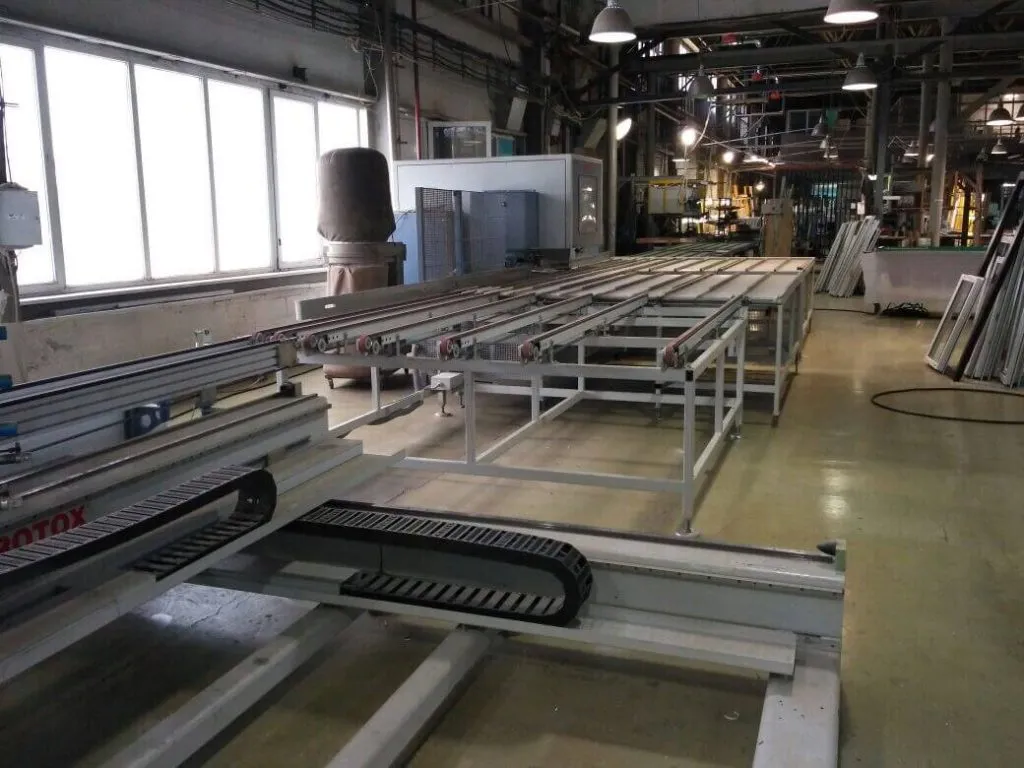

Schirmer/Rotox Complete PVC Production Plant - 360 Units per Shift!

previous arrow
next arrow
ArrowArrow
Slider

Description

Includes:

  • In-feed magazine;
  • 6-axis “ULTRA SPEED” G-module;
  • Seal insertion module;
  • Free space;
  • Horizontal drilling station for roller-shutter nipples;
  • “ULTRA SPEED” VU-saw;
  • “FLEX” swivel saw;
  • Contour milling station.

Cross conveyor module used as a real time buffer equipped with:

  • Two contour milling stations for the first cut or segment ends;
  • Manually operated steel insertion station;
  • Free space for installing an automatic steel insertion station;
  • Steel insertion finger for aligning the manually inserted steel reinforcements;
  • Two screw insertion stations for simultaneously inserting two screws.

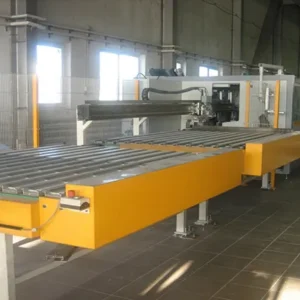

SBZ I profile bar machining center equipped with:

  • Two screw insertion stations for simultaneously inserting two screws.

SBZ II profile bar machining center equipped with:

  • CNC drilling station, 3-side working using 5 drill motors.

Cross conveyor module used as a real time buffer:

  • Rotox assembly workstation;
  • Bauer roller table;
  • Bauer roller table L=2600 mm;
  • Gevo automatic screwdriver;
  • 2 Rotox 4-head welding machine;
  • 1 Rotox 4-Head welding machine;
  • Rotox transport section;
  • Rotox transport section;
  • Rotox corner cleaning machine;
  • Rotox corner cleaning machine;
  • Rotox corner cleaning machine;
  • Rotox glazing bead saw;
  • Rotox glazing bead saw;
  • Rotox loading measurement stand;
  • Rotox loading measurement stand;
  • Rotox roller table;
  • Rotox roller table;
  • Rotox transport station;
  • Rotox assembly table;
  • Rotox shutters drilling table;
  • Rotox assembley table;
  • Rotox sash assembly station (with a magazine);
  • Rotox assebly table;
  • Complete glazing line.

Produces 360 units per shift.

For the full list of machinery please contact us.

Perfect Working Condition.
