PVC Window Welding/Cleaning Line (AKS 6250, SV 530-B/4)

previous arrow
next arrow

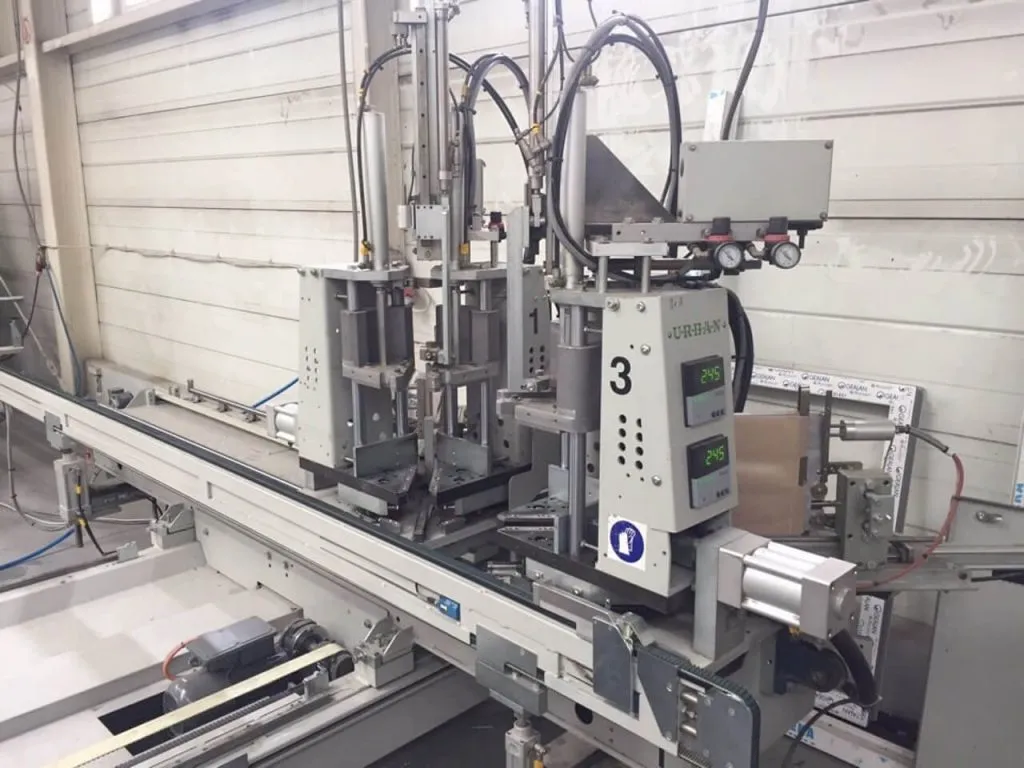

2013 Urban Horizontal 4-head welding machine (AKS 6250)

With the horizontal 4-head welding machine AKS 6250 with adjustable weld seam limitation of 0.2 mm to 2.0 mm we developed for you a very flexible and high-quality welding machine that optimally meets your requirements.

All components correspond to our high quality standard and the good accessibility of those components allows quick and easy cleaning and maintenance. A big plus regarding flexibility is the weld seam regulation of 0.2 to 2.0 mm. Due to this function an exact welding of white and colored profiles is possible while there is no negative effect on the corner strength when welding white profiles with a weld seam of 2.0mm.

All parameters can be individually adjusted and the welding temperature is constantly monitored by perfectly synchronized temperature regulators and heating elements. The fusing time automatically adapts to different profiles. Electronic positioning of the axes X and Y via AC servo-motors which are disconnected during the welding process (no position control). All machines are equipped with an automatic discharge to a subsequent cleaning machine.

2013 Urban SV 530-B/4 – Corner cleaner with 4 axes for shortest cycle times

The PC control – as a standard with an industrial PC basing on Windows – guarantees an operator-friendly handling of the cleaning machine as well as an excellent and uncomplicated integration into your production and easy connection with other machines and lines. The profile identification offers the possibility of a fully-automatic identification of your profiles and profile systems (optionally available). Additionally you can connect or disconnect different machining units. All in all, 17 tooling positions are available so that up to 26 individual machining units are possible with multiple tooling.

The standard tooling includes: two grooving or cutting knife units, two inside cleaning units, two drilling/milling units and a disc cutting unit. Optionally numerous special tools are at your disposal and offer a variety of machining possibilities: horizontal/vertical knife cutting unit as well as an inside cleaning unit for inclined inner corners and radii (further machining units on demand).

You also can retrofit your SV 530-B with an automatic turning station WT 530-B. By the fully automatic turning and feeding of the window frames you save time and increase your productivity. The proven turning technology guarantees an easy turning of small and big frames with transoms and crosses and individually fits in your  production line due to the fact that you can freely choose the throughput direction.

Perfect Working Condition!

For full list of machinery included please contact us.
