Emmegi Satellite XT 15500 Machining Centre

  • Manufacturer: Emmegi
  • Year: 2015
  • Location: Europe
  • Category: Aluminum Machining Centers
previous arrow
next arrow
ArrowArrow
Slider

Description

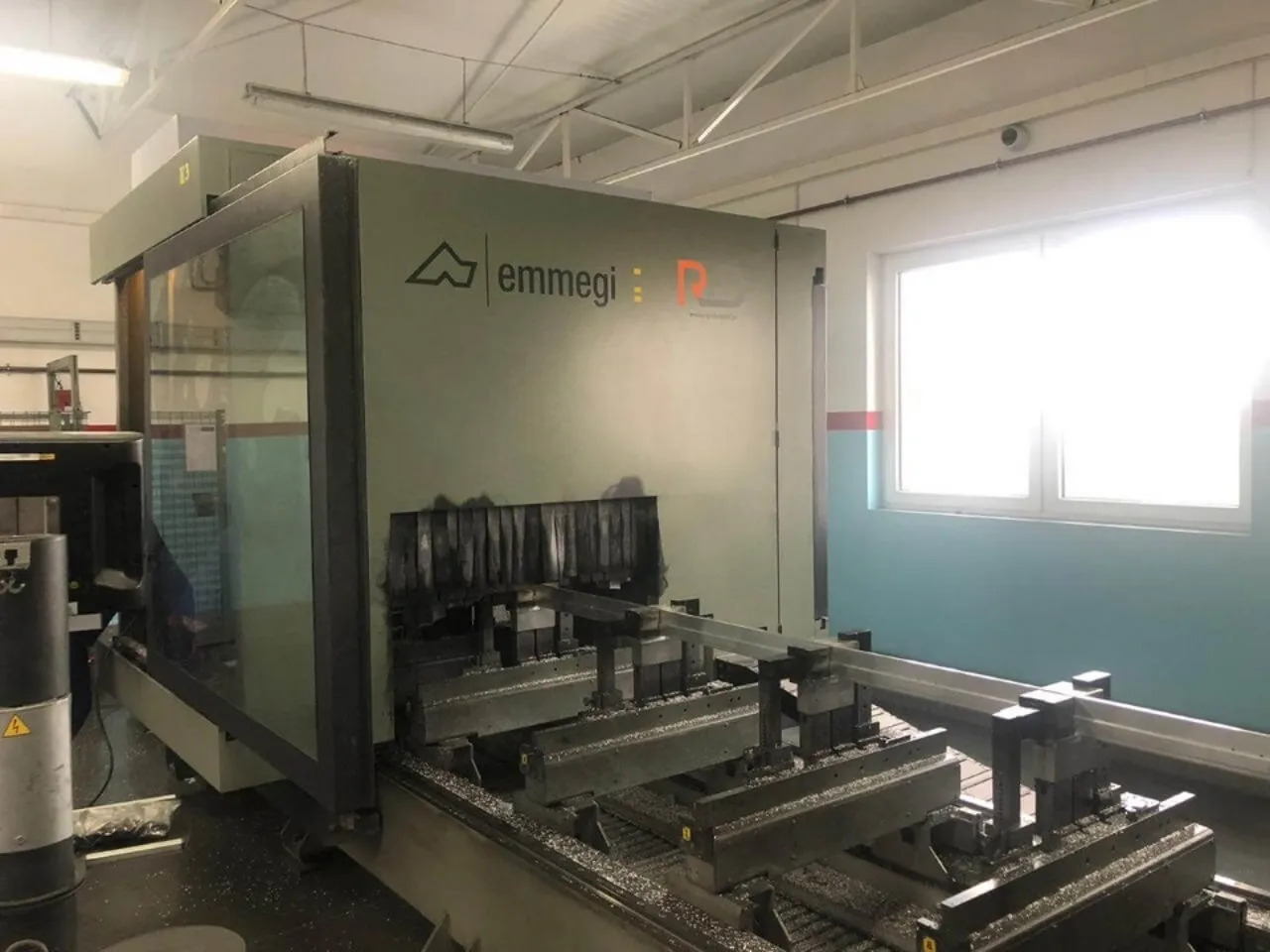

5-axes CNC mobile gantry machining centre, built to run milling, drilling, threading and cutting processes on large bars or workpieces in aluminium, PVC, light alloys in general and steel.

The mobile part of the machine consists of a gantry equipped with a precision motorization rack.

The high-power electro spindle (15 kW in S1) with HSK-63F tool connector allows even heavy-duty machining to be run with excellent speed and accurate results. On the mobile gantry, there is the tool magazine with 16 places. A 500 mm blade tool is housed separately in a dedicated magazine. The machine can be used in a double operation, a work method that reduces machine stoppage times to a minimum as it allows part change over (loading/unloading) to be run in “concurrent time”. With the dynamic pendular version, it is possible to further improve this functionality, given that the positioning of the clamps can be done in completely stand-alone mode from the gantry.

Furthermore, the machining of different workpieces and between the two work areas is possible. The gantry is equipped with a casing that not only protects the operator but also reduces the environmental noise impact.
